Application: Street cleaning & parking lot maintenance, road maintenance clean-up, bridge deck clean-up, jobsite clean-up.​​​​ Parking stands Angles 30º right or left 32″ brush diameter Adjustable broom head Integral nozzle mounting for water application 50/50 Poly/wire brush core Bolt together hood for simple, less costly replacement, if damaged Quick-change brush without breaking hydraulic lines Dual hydraulic motors – Caster wheels – 4.80-8 tires

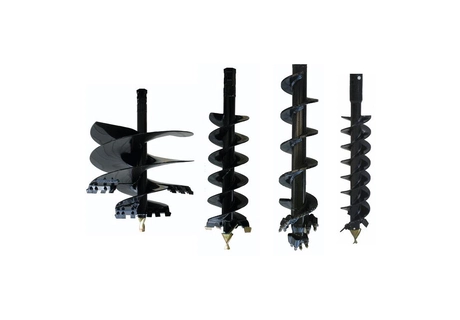

HTF STYLE AUGERS: For tree and shrub planting Fabricated boring head Two-diameter design Hardened, bolt-on teeth Hardened “fishtail” point HD double flighting 4′ overall length HDF STYLE AUGERS: For light to moderate ground conditions Fabricated boring head Hardened bolt-on teeth Hardened “fishtail” point Heavy-duty double flighting 4′ overall length HDC STYLE AUGERS: For difficult ground conditions, compacted soils, heavy clay, asphalt, frozen ground fracturable rock HD cast boring head Hardened, drive-in teeth Hardened “fishtail” point Heavy-duty double flighting 4′ overall length SRR ROCK AUGERS: For solid, fracturable rock, frozen ground and compacted soils Bullet style teeth Fabricated boring head HD single flighting 2″ hexagon collar only 0.75″ thick bottom flight and a hardface outer edge 4′ overall length

HTF STYLE AUGERS: For tree and shrub planting Fabricated boring head Two-diameter design Hardened, bolt-on teeth Hardened “fishtail” point HD double flighting 4′ overall length HDF STYLE AUGERS: For light to moderate ground conditions Fabricated boring head Hardened bolt-on teeth Hardened “fishtail” point Heavy-duty double flighting 4′ overall length HDC STYLE AUGERS: For difficult ground conditions, compacted soils, heavy clay, asphalt, frozen ground fracturable rock HD cast boring head Hardened, drive-in teeth Hardened “fishtail” point Heavy-duty double flighting 4′ overall length SRR ROCK AUGERS: For solid, fracturable rock, frozen ground and compacted soils Bullet style teeth Fabricated boring head HD single flighting 2″ hexagon collar only 0.75″ thick bottom flight and a hardface outer edge 4′ overall length

Application Parking lot sweeping, City street sweeping, Construction site clean-up Access road clean-up County and state road sweeping Specifications / Features CS High Dump Collector Sweeper with floating suspension 26″ Diameter poly/wire combination brush Parallel arm floating suspension with 4 caster wheels allows sweeper to follow ground contour independent of loader High dump feature to dump into trucks and containers No chains, additional connections to the loader or electrical connections are required to dump Hopper dumps by reversing hydraulic flow Forward sweeping action into the front mounted collector hopper E-Z change brush pattern adjustment and floating brush Parking stands

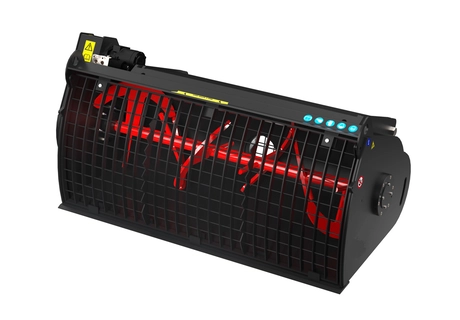

Specially designed for intensive Site works. This cost-effective attachment can mix a variety of materials like Concrete, Mortar, Sub-base material and Special soil. Application: Small Construction, Sidewalks, Driveways, Footings, Landscaping. Equipped with External Orbital Hydraulic Motor (Eaton) 12 or 24 Volt electrical control valve for hydraulic unloading plate opening Unloading opening hydraulic cylinder with protected rod Hand opening protection grid with gas sustain springs Bolted Protection Grid – Unloading Hose

Curved side cutter to improve digging Suitable for Direct Fit, Mechanical QC and Universal QC Application Provided with Welded cutting Edge

Suitable for demolition and recycling Heavy Duty construction Twin cylinder with Ram protection Low side allow material wider than bucket to be carried Two-piece independent grapples Hydraulic pressure relief valve avoids hydraulic system overloading Complete with bolt on reversible cutting edge Grease pins throughout Bucket Width – 2500 mm Weight – 800 Kgs

Suitable to be installed on 1.15m3 Bucket.

Hybrid Breaker Work Mode Selection – Power & Speed Mode Anti Blank Fire Internal Valve System Auto Lubrication System Housing Bottom Plate Breaker Paste Tie Rod with larger Diameter Large Capacity of Accumulator Longer Life of Accumulator Diapharm Bolt Torque Heavy Duty Tool Pin (Large Size) High Tensile Wear Resistant Lower & Upper Bushes Side Gas Charging Port Air Supply Channel Housing Type – Closed Box Floating Power Cell System Includes : Breaker power cell and housing Breaker bracket Tools – 2 Nos Hose kit without quick coupling Gas charging kit Maintenance tool box Manual in English

Direct-drive, heavy-duty gear motor Rubber shock mounts Box section base plate construction Angled shock mount suspension Thick formed base plate Flow control to prevent over speeding Virtually zero-maintenance oil bathed bearings Readily adaptable to other loader/backhoe brands The extremely rugged direct drive system has a large flywheel that Designed to compact any surface. Vibrating Plate Compactors are an excellent solution for achieving a solid, even, and well compacted bottom that will never give way ADVANTAGES: Precision, Maintenance-free & Versatile Applications Utilities, construction, road maintenance Ideal for slope compaction Requirements for Operation Uni- or bi-directional auxiliary hydraulics Pin/bushing/insert kit & hose kit specific to model Dipper quick disconnect kit

Suitable for Backhoe Loaders equipped with Tool Carrier Loader Arm.

EN 474-1 & ISO 13031 Compliant Front & Rear Safety Lock High Strength Steel Low Maintenance No Greasing Points

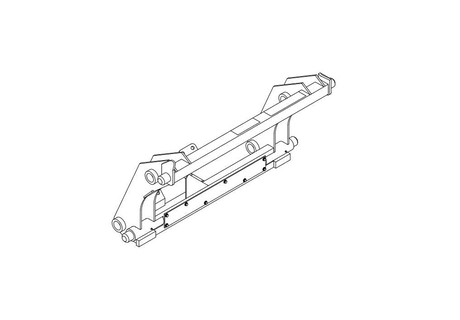

Manual Quick Coupler Heavy Duty construction Suitable to attach all CASE Buckets (Standard, Heavy Duty and Ditch Cleaning) Variable pin center design allows you to easily pick up and swap the bucket Very compact design Stronger and lighter to improve performance

Suitable for Backhoe Loaders equipped with Straight Loader Arm.

CNHi’s Pallet Forks are designed with a high strength lightweight frame. The Forks are equipped with guard for excellent visibility. The lifting capacity of the complete attachment is governed by the operating capacity of the host machine.

Suitable to attach all CASE and JCB Buckets (Standard, Heavy Duty) Very compact and flexible design Two Fixing Points to improve Digging Force or Speed Stronger and Lighter to improve performance

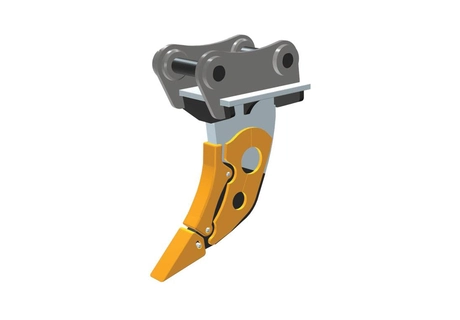

Ripper is designed to provide powerful ripping ability in hard ground materials and the most demanding demolition applications. Range from 4 to 75 ton excavators Apply all the power of your excavator at one point for maximum ripping efficiency Replaceable tooth and wear shroud (450 BHN) Added side wear protection to extend life of ripper (for excavators bigger than 14 tons) Extra thick steel shank for increased strength Ripper reduces excessive stresses on your excavator Reinforcing gussets for added durability

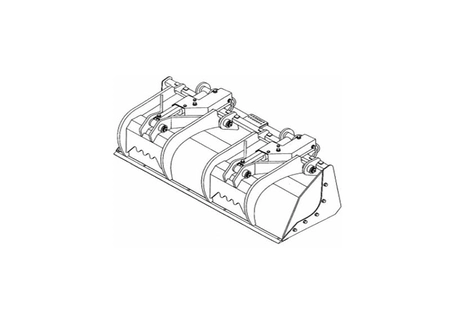

Hoses and quick disconnects included 3/8″ plate webbing – full protection to the cylinders 46.3″ opening for handling of bulky materials Grapples operate independently to accommodate uneven loads Bucket cylinders are cushioned to reduce stress on moving parts Pivot pins are larger in diameter and cover the width of each grapple, reducing side load Applications: Moves metal, concrete, paper, cardboard and other bulky material

Low profile thumb storage for better visibility Grease zerks recessed for protection from the elements Multiple T1 steel fingers for rugged construction and longer wear life Requirement for Operation: Bi-directional dipper auxiliary hydraulics Welding required

Suitable to attach all CASE and JCB Buckets (Standard, Heavy Duty) Very compact and flexible design Two Fixing Points to improve Digging Force or Speed Stronger and Lighter to improve performance
